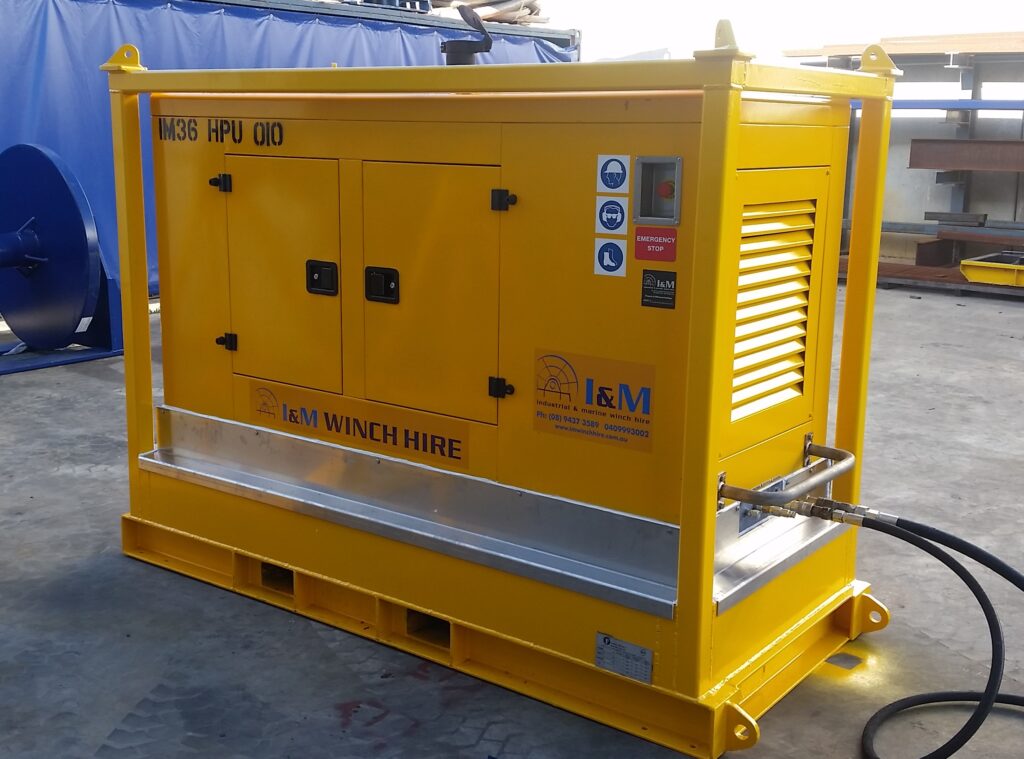

36kW Diesel Driven Hydraulic Power Unit

Engine Make:Cummins 4BTA
Engine Output (kW):36kW @ 1500rpm
Hydraulic Pump Size:62cc
Max Pressure (bar):230bar (@ 80L/min)
Max Flow (l/min):80
Weight (kg):2300
Dimensions (mm):3100 x 1100 x 2100

The 36kW Diesel Driven Hydraulic Power Unit stands as a robust and efficient power solution designed to excel across diverse applications. Engineered with the strength of a Cummins 4BTA engine, it commands a formidable output of 36kW at 1500rpm. Featuring a hydraulic pump measuring 62cc, it effortlessly attains a maximum pressure of 230bar at 80L/min. Weighing in at 2300kg, its dimensions span 3100 x 1100 x 2100 mm. This diesel-driven unit emerges as the ultimate choice for operations necessitating consistent hydraulic power pack, like winching tasks within construction sites, marine environments, or industrial landscapes. When united with our assortment of winches, it tackles demanding winching challenges with utmost effectiveness.
